GL3000 Series
Product Discontinuation:
The GL3000 and GL4000 data logger series are still available until 30 June 2025. Recommended alternatives: GL3400 and GL5000.
The GL3000 and GL4000 data logger series are still available until 30 June 2025. Recommended alternatives: GL3400 and GL5000.
The GL3000 series is a synonym for performance, flexibility, reliability and robustness and can evaluate and store all the important automotive bus systems synchronously and in real time.
This performance opens new possibilities for quality control, troubleshooting and system monitoring.
The WiFi and mobile radio options allow fast and automated data exchange. Regarding fleet testing this means a fast access to stored data as well as an update of device software and device configuration. The GL3000 series with its large storage possibilities (CF card using GL3000 and GL3100, SSD exchangeable harddisk using GL3200 or USB mass storage devices for all derivates) is ideal for long-term data recording and global fleet trials.
This performance opens new possibilities for quality control, troubleshooting and system monitoring.
The WiFi and mobile radio options allow fast and automated data exchange. Regarding fleet testing this means a fast access to stored data as well as an update of device software and device configuration. The GL3000 series with its large storage possibilities (CF card using GL3000 and GL3100, SSD exchangeable harddisk using GL3200 or USB mass storage devices for all derivates) is ideal for long-term data recording and global fleet trials.
Information Sheet
GL3000 series: All Key Details
at a Glance – Get Informed Now!
at a Glance – Get Informed Now!
Areas of Application
- Automated Logging
- Rest Bus Simulation
- Gateway functionality with optional signal manipulation
- Automated Data Transmission
- Automated Reconfiguration
- Fleet operation and monitoring
- Switching to Sleep mode when the bus is idle
- Wake-up the data logger via bus activity
- Automated triggers (e.g. for error memory entries)
- CCP/XCP on CAN/Ethernet
- Vehicle diagnostics
- DLT (Diagnostic, Log and Trace)
- Customer specific communication protocols
- Fleet operation and observation
- Field testing
- Summer and winter testing
- Damage analysis (rainflow classifications)
- Online data transfer
- Online configuration transfer
- Online signal display and analysis
- Support of data logger measurement systems at the customer's site
- Implementation of the measurement task in data logger configurations
- Tracking of complaints in the vehicle
- Analysis of logged data from the vehicle
- Customized solutions for specific requirements
- Implementation of customer-specific websites on the data logger (GLWebDisplay)
- Commissioning of the measurement system in the vehicle
Offers a wide range of configuration options
Fast readout of data ability
Location-independent and fast data access due to the mobile communication
High storage capacity with easily exchangeable SD card
Software support is included
Interfaces
Communication
Features
Logging Function
Classifier Function
Gateway Function
Further Fuctions
Interfaces
- Up to 20 CAN interfaces
- Up to 16 LIN interfaces
- Up to 12 UART channels
- 8 digital inputs & 8 digital outputs
- Up to 12 analogue inputs
- 2 AUX interfaces to connect internal accessories
Communication
- Wireless LAN
- Mobile radio (via LTE Router)
- 3 USB interfaces (2 host and 1 device)
- 2 Ethernet interfaces
- 1 RS-232 interface
Features
- 2 x ARM9 processor
- LINUX operating system with fast boot-up
- Prelog function during system boot-up after 40 ms max
- 8-digit alphanumeric display
- Fully programmable (text or graphic based)
- 4 programmable event keys
- 5 freely programmable LEDs
- Remote control with:
– two user-programmable keys e.g. for a manual triggering and
– two LEDs for status indication - Battery-backed real-time clock
Logging Function
- Ring buffers control via freely programmable start and stop trigger criteria with adjustable post and Pretrigger
- Complex trigger criteria on messages, signals, inputs, keys
- Message- and signal-related logging
- Programmable recording filter for specifying messages to log (identifier or the complete channel)
- Tachograph function
- Synchronous recording of a vehicle’s position data during the test drive
- Synchronous recording of driver observations in audio form during the test drive
- Synchronous recording of high-resolution colour pictures during the test drive (e.g. dashboard or vehicle environment)
- Recording and evaluation of digital and analogue inputs
- Recording of the first waking message in half-sleep mode
Classifier Function
- Free definition of 0-, 1- and 2-dimensional classification tasks
- Up to 26,000 classes per classification task
- Different classifier types:
– Minimum and maximum values of a variable– Frequency of occurrence of a criterion
– Idle time and active time of a criterion
– Frequency of value change of a condition or of a signal
- Rainflow analysis
- No limitation on recording time
- Classification results readout saved in tabular form (e. g. for MS Excel)
Gateway Function
- Exchange of CAN data between two or more buses
- Up to 36 independent gateways
- Blocking and forwarding configurable at message level
- Freely programmable changes to the contents of messages to be forwarded
- Conversion between two different CAN baud rates and/or physical layers (low-speed, high-speed etc.)
- Forwarding from LIN to CAN
Further Fuctions
- Timeout monitoring for messages
- Measurements on control devices using XCP on CAN and on Ethernet with Seed&Key
- Triggering of programmable LEDs and internal as well as external display
- Simple Integration of databases (DBC, LDF and XML in the configuration)
- Export options of log data to TXT, ASC, LOG, BLF, HDF5, Matlab® or MDF format
- Monitoring function of the bus communication with CANoe or CANalyzer

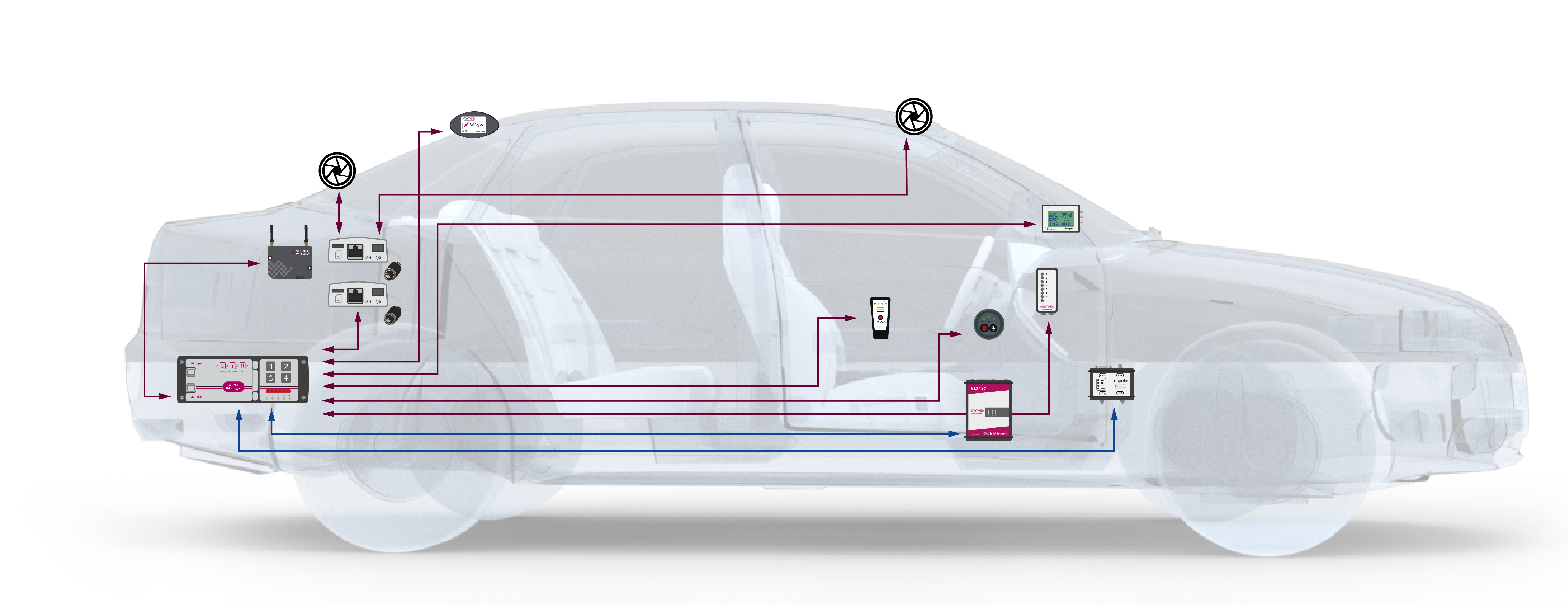

IN-VEHICLE USAGE
LINprobe
CAN-/ LIN-Gateway
CA8DL
Compact monitor for digital
display of states via 8 LEDs
VoCAN
Compact handset
for voice recording
and playback of speech
CASM2T3L
For triggering with sound output
and with a microphone for
voice recording
LOGview
LCD display with
16 independent and freely
programmable pages
GLX427
For 12 additional CAN interfaces
and up to 15 serial interfaces
HostCAM
Up to 2 cameras
LTE Router
Remote data transmission
CANgps
Determines and sends the
position data via CAN or
RS-232 to the data logger
CONNECTIVITY
LINprobe
2 x LIN to CAN converter
To product
HostCAM F44
With up to 4 sensor units for recording pictures and image sequences on data loggers
To product
CANgps
GPS receiver on CAN
To product
LTE Router
LTE router for mobile data transmission
To product
LOGview
Freely configurable, controllable display with page switching and event triggering via push button
To product
CA8DL
Compact monitor for displaying digital signals and conditions via 8 LEDs
To product
CA4T4DL
Triggering events via 4 push buttons and calling up states via 4 LEDs
To product
CAS1T3L
Compact handset for displaying conditions via 3 LEDs and for triggering events via 1 push-button with additional sound output.
To product
CASM2T3L
Compact handset for displaying conditions, triggering events and for voice recording as well as sound output.
To product
GLX427
For a further 12 CAN interfaces and up to 15 serial interfaces
To product
