GL2000 Series
The GL2000 series, with its 4 CAN and 2 LIN buses closes the gap between the GL1000 series and the G.i.N. high-end data logger. Because of its still compact and robust design, the GL2000 and GL2010 are still able to be built into the vehicle in a safe and unobtrusive manner. The provided software package is compatible with the complete G.i.N. data logger family and offers the mighty LTL functionality regarding filtering, triggering and real time data processing.
The GL2000 and its IP-65 protected sibling GL2010 are predestined for use in harsh environment.
Information sheet
GL2000 series: All Key Details
at a Glance – Get Informed Now!
AREAS OF APPLICATION
- Automated logging
- Rest bus simulation
- Gateway functionality with optional signal manipulation
- Automated data transmission
- Automated reconfiguration
- Fleet operation and monitoring
- Switching to Sleep mode when the bus is idle
- Wake-up the data logger via bus activity
- Automated triggers (e.g., for error memory entries
- CCP/XCP on CAN
- Vehicle diagnostics
- Customer specific communication protocols
- Fleet operation and monitoring
- Field testing
- Summer and winter testing
- Damage analysis (rainflow classifications)
- Online data transfer
- Online configuration transfer
- Support for data logger measurement systems at the customer’s site
- Implementing measurement tasks in data logger configurations
- Tracking complaints in the vehicle
- Analyzing logged data from the vehicle
- Customer-specific solutions for specific requirements
- Commissioning of the measurement system in the vehicle
Offers a wide range of configuration options
Fast data readout ability
Location-independent and fast data access due to the mobile communication

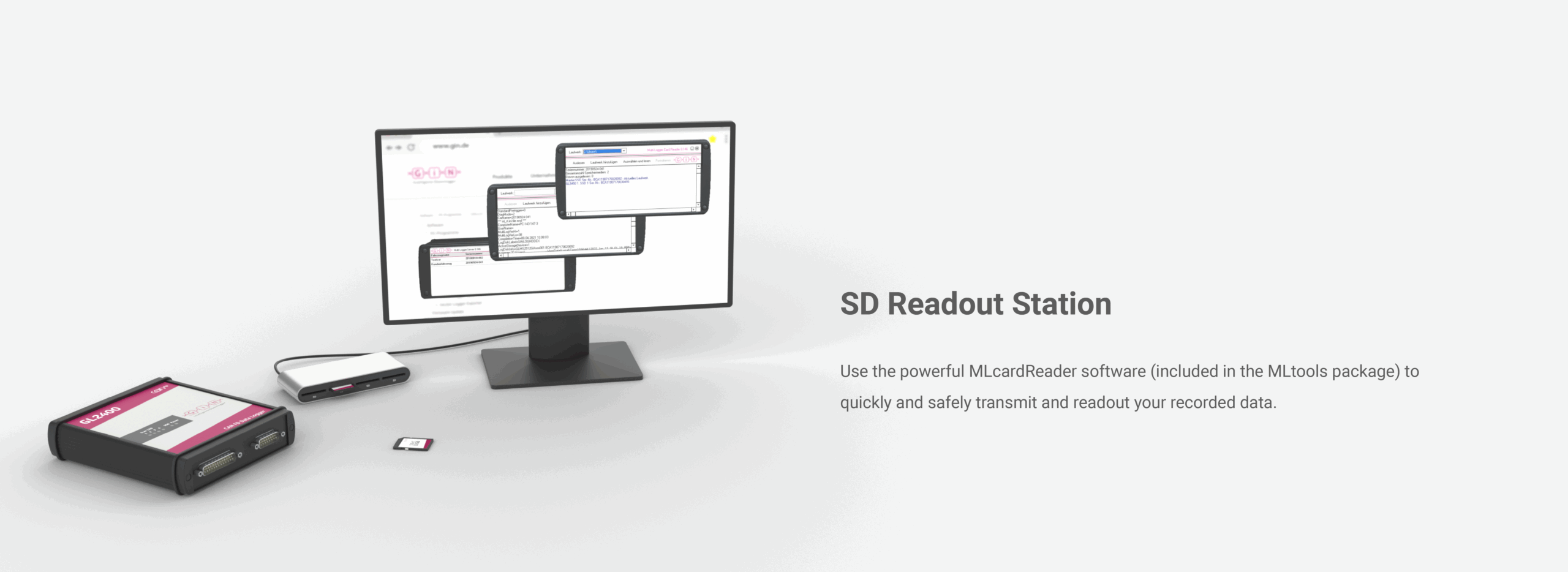

High storage capacity with easily exchangeable SD card

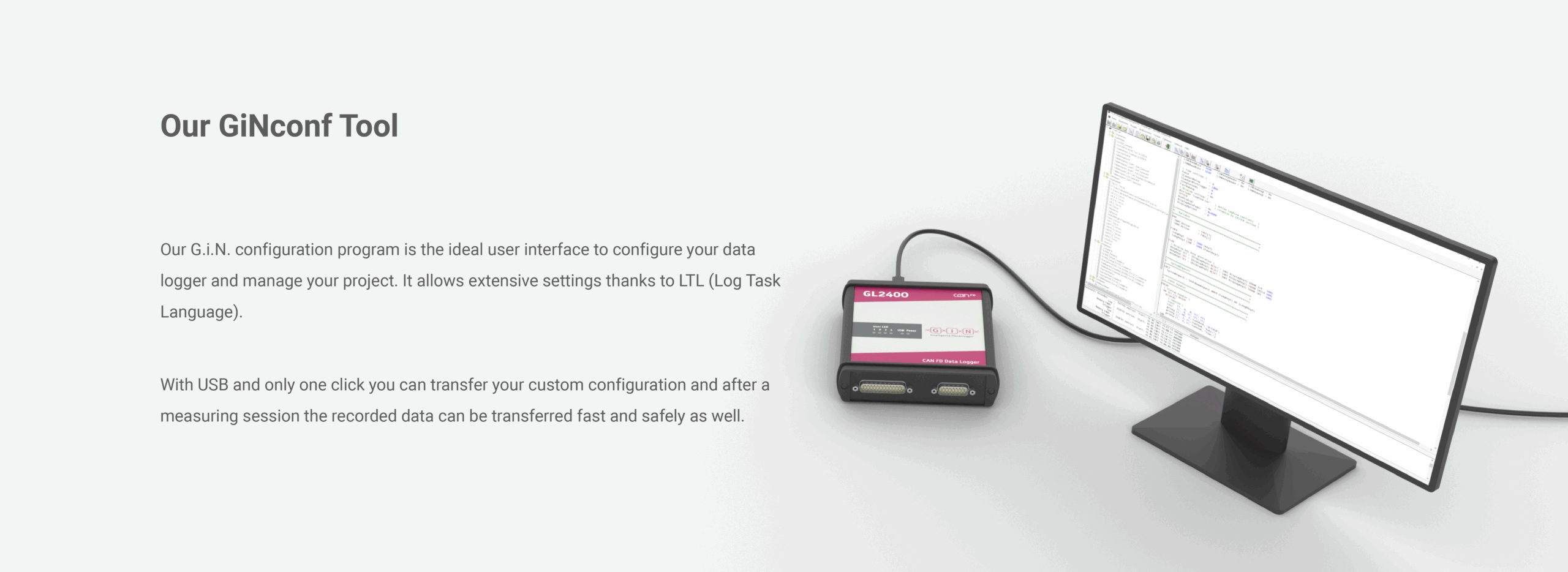

Software support is included
Interfaces
Communication
Features
Logging Function
Classifier Function
Gateway Function
Further Function
Interfaces
- 5 CAN channels
- 11 virtual CAN channels
- 2 LIN channels
- 1 UART channel
- 1 RS-232 interface for GPS signal recording
- 1 High speed USB 2.0 interface for configuration and data transfer
- 4 digital inputs and outputs
- 4 analog inputs
- 1 AUX interface to connect external accessories via high-speed CAN

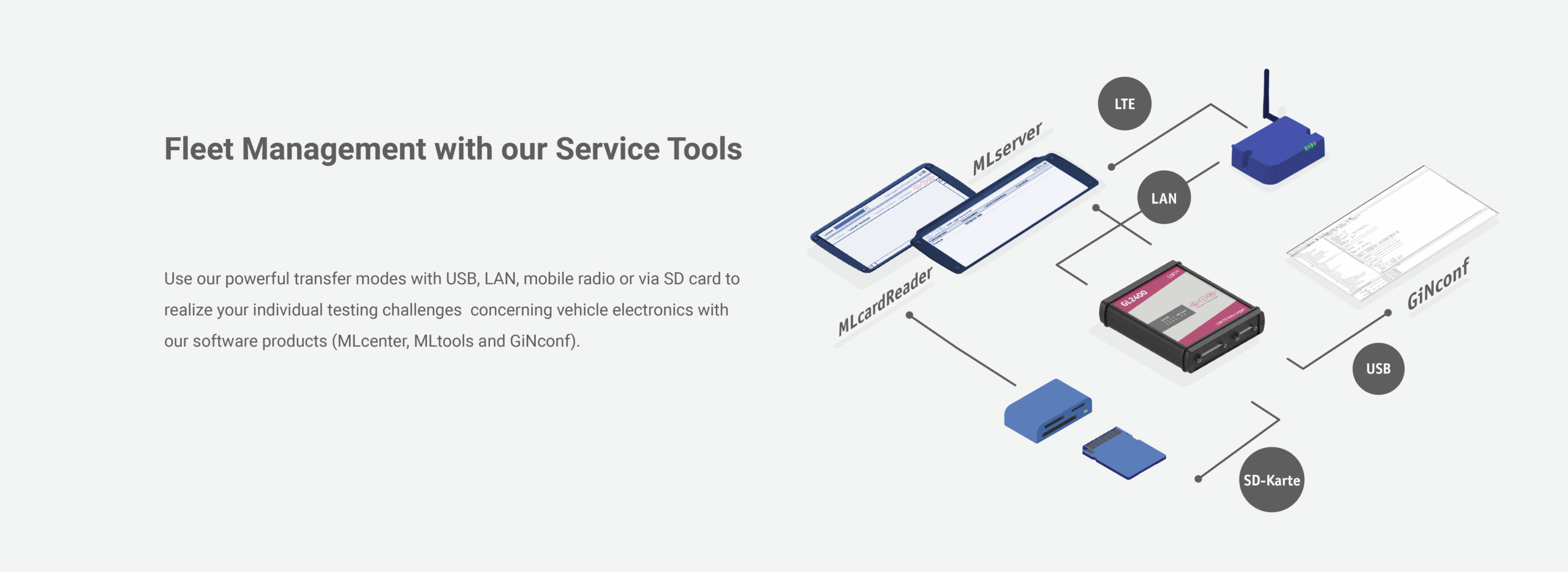

Communication
- Mobile radio (via LTE router)
- 1 USB interface
- 1 Ethernet interface
Features
- Freely programmable data logger
- Interchangeable SD card with up to 16 GB storage capacity
- Remote control with the following features:
– two user-programmable keys e.g. for manual triggering and
– two LEDs for status indication - Sleep mode with automatic wake-up on message receipt
- Additional “Terminal 15” or “Wake” line for wake-up when the ignition is switched on
- Wake-up clock for cyclic awakening during long-term measurement
- 1 shutdown button
- 4 programmable LEDs for status indication
- 1 LED to indicate power status
- Integrated acoustic signal generator
- Battery-backed real-time clock
- Automotive supply and temperature range
- Waterproof to IP65 variant (GL2010)
Logging Function
- Ring buffer control via freely programmable start and stop trigger criteria with adjustable post and Pretrigger
- Complex trigger criteria on messages, signals, inputs, keys
- Message- and signal-related logging
- Tachograph function
- Synchronous acquisition of vehicle position data during test drives
- Synchronous recording of driver observations in audio form during test drives
- Logging and analysis of digital and analog input values
- Recording of the first wake-up message in semi-sleep mode
Classifier Function
- Free definition of 0, 1 and 2-dimensional classification tasks
- Up to 25,000 classes per classification task
- Different classifier types:
– Minimal and maximum values of a variable
– Frequency of occurrence of a criterion
– Idle time and active time of a criterion
– Frequency of value change of a condition or a signal - Rainflow analysis
- No limitation on recording time
- Classification results readout saved in tabular form (e. g. for MS Excel)
Gateway Function
- Exchange of CAN data between two or more buses
- Up to 6 independent gateways
- Blocking and forwarding configurable at message level
- Freely programmable changes to the contents of messages to be forwarded
- Conversion between different CAN baud rates and/or physical layers (low-speed, high-speed etc.)
- Forwarding from LIN to CAN
Further Function
- Sending on CAN
- Timeout monitoring of messages
- Measurements on control devices using CCP/XCP on CAN with Seed&Key
- Triggering of programmable LEDs and external display
- Simple integration of DBC and LDF databases in the configuration
- Export options of log data to TXT, ASC, LOG, BLF, HDF5, Matlab® or MDF format
- Monitoring-Funktion zum Überwachen der Buskommunikation mit CANoe oder CANalyzer

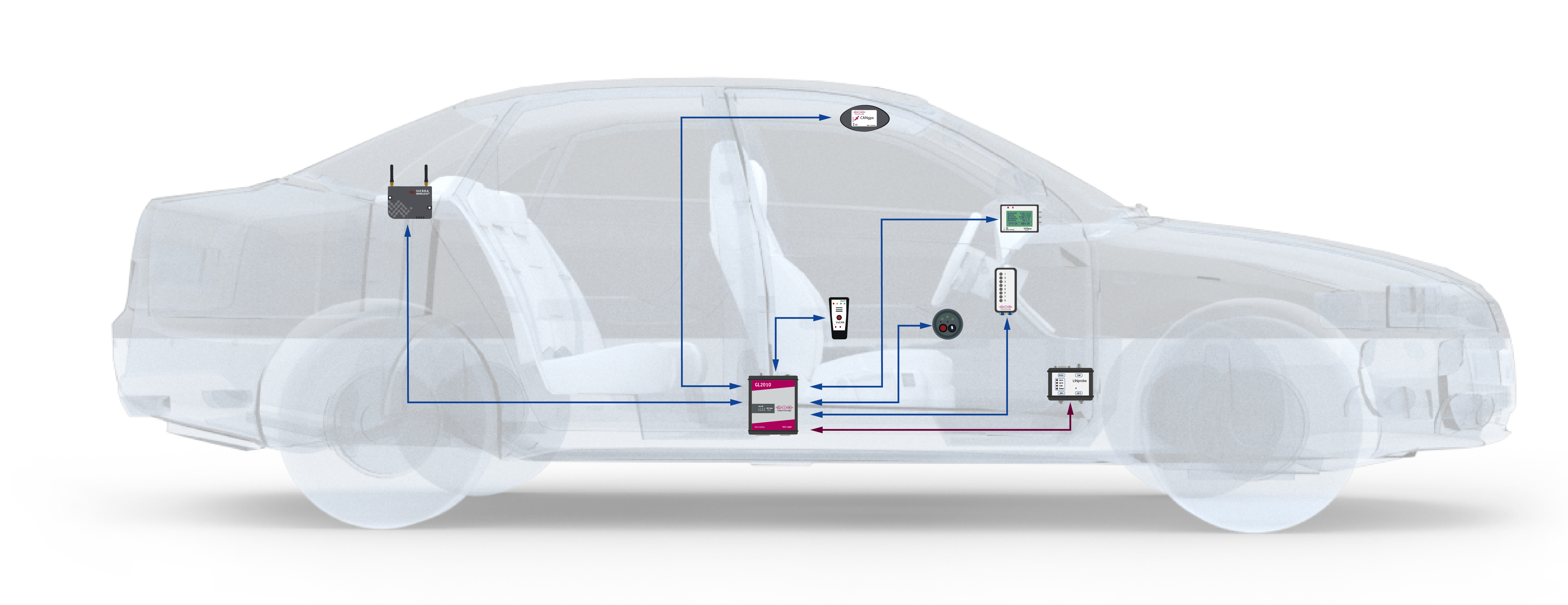

IN-VEHICLE USAGE
LOGview
LCD display with
16 independent and freely
programmable pages
LINprobe
CAN-/ LIN-Gateway
CA8DL
Compact monitor for digital
display of states via 8 LEDs
CANgps
Determines and sends the
position data via CAN or
RS-232 to the data logger
LTE Router
for remote data transmission
VoCAN
Compact handheld device for
voice recording and
voice playback
Compact handheld device for
voice recording and
voice playback
CASM2T3L
For triggering with tone output
and with a microphone
for voice recording
For triggering with tone output
and with a microphone
for voice recording
CONNECTIVITY
LOGview
Freely configurable, controllable display with page switching and event triggering via button
To Product
CA8DL
Compact monitor for digital display of states via 8 LEDs
To Product
CA4T4DL
Triggering events via 4 buttons and retrieving states via 4 LEDs
To Product
CAS1T3L
Compact handheld device for displaying states via 3 LEDs and triggering events via 1 button with additional tone output.
To Product
CASM2T3L
Compact handheld device for displaying states, triggering events, voice recording, and tone output.
To Product
CANgps
GPS receiver on CAN
To Product

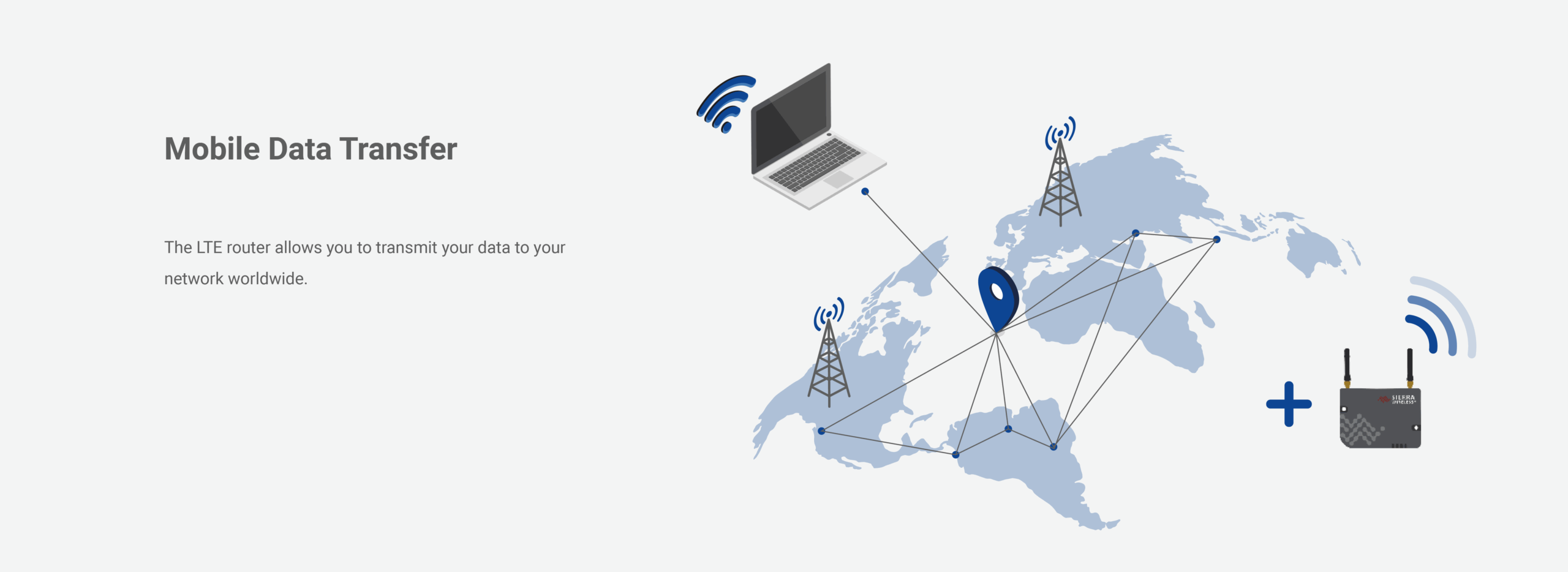

LTE Router
LTE router for mobile data transmission
To Product
LINprobe
2 x LIN to CAN converters
To Product
DOWNLOAD-AREA
Please log in to access the download area.
| Title | Size | Date added | Download |
|---|---|---|---|
| MLtools_MLcenter_Manual_E | 3.34 MB | 01-12-2025 | |
| GiNconf configuration program V. 1.5.0041 (64 Bit) | 311.59 MB | 01-12-2025 | |
| Visual LTL (V. 3.22.0.0) | 111.02 MB | 01-12-2025 | |
| LTL_programming_Manual_E | 3.91 MB | 01-12-2025 | |
| MLtools (V. 0.155.1.0) | 186.45 MB | 01-12-2025 | |
| LogGraph analysis program (V. 4.3) | 6.31 MB | 26-06-2024 | |
| GL2000_Manual_E | 2.57 MB | 01-12-2025 | |
| LogGraph_Manual_E | 1.79 MB | 01-12-2025 | |
| VisualLTL_Manual_E | 7.41 MB | 01-12-2025 | |
| GiNconf_Manual_E | 2.77 MB | 01-12-2025 | |
| GL2000_Supplier inquiry device | 5.29 MB | 11-01-2022 | |
| GL2000_Supplier inquiry Panasonic | 263.73 KB | 11-01-2022 |
