Our Data Loggers:
intelligently record and readout,
store and process

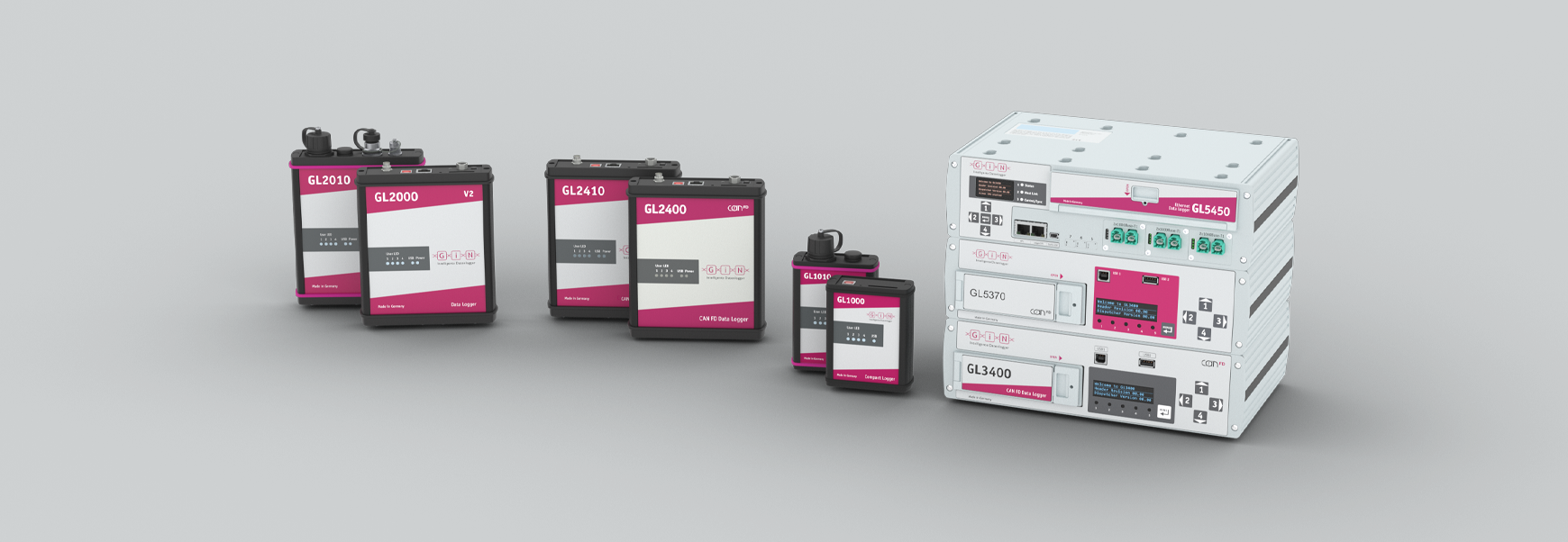

Since the beginning of the company, industrial networks and field bus systems were core capabilities. Quickly, this paved the way for today’s core business: A vast range of data loggers for many applications in the automotive industry and on test stands of any kind. Everything from inexpensive and small data loggers with 2 CAN bus interfaces to multi bus data loggers with potent storage capabilities.
G.i.N intelligent data loggers can be used as standalone tools for recording CAN, CAN FD, CAN FD SIC, LIN, FlexRay, automotive Ethernet 100-/1000Base-T1, USB, RS-232 and K-Line data communication. Additional GPS data and digital as well as analogue values can be recorded and readout time synchronous.
Measurements on control units via CCP/XCP during a test drive are part of this intelligence and can be saved as well. Event-controlled and during a test drive, observations of the environment or of dashboard with high-quality color images/image sequences as well as in audio form can also be documented synchronously in the data logger for later comparison with the communication data. G.i.N. intelligent data loggers act as gateway, rest bus simulator and controller. They allow extensive filter and trigger possibilities to reduce unnecessary online data floods as well as online calculations and classifications of all kinds.
Our Data Logger Matrix
FlexRay
-
-
-
-
2
-
2
LIN
2...16*¹
2...16*¹
2...16*¹
2...21*¹*²
2...36*¹*²*³
-
1...80*¹*²*³
CAN
2
5
1
1...13*²
17...29*² (GL5350) 13...25*² (GL5370)
-
12*²
CAN FD
-
-
4
8...12*⁴
4...24*⁴ (GL5350) 12...32*⁴ (GL5370)
-
-
Ethernet
100Base-T1
1000Base-T1
-
-
-
-
-
-
-
-
-
5
-
-
5
-
-
-
20
6
10+2
4
2
Analog Input
4
4
4
4...12
4...12
-
6
Digital Input
Digital Output
2
2
4
4
4
4
4
4
4
-
-
2
2
Interner Speicher
-
-
-
2x 200 MB
2x 400 MB
2 GB
-
Externer Speicher
SD/SDHC-Karte
SD/SDHC-Karte
SD/SDHC-Karte
SSD
SSD
2x SSD
4x SSDs
Kommunikation
USB
USB
LAN
Mobilfunk
USB
LAN
Mobilfunk
USB
LAN/WLAN
Mobilfunk
RS-232
USB
LAN/WLAN
Mobilfunk
RS-232
USB
LAN
USB
LAN
Mobilfunk
RS-232
* GL4000 series only
*1 Expandable with LINprobe
*2 Expandable with GLX427
*3 Expandable with GLX415
*4 Expandable with GLX504
*1 Expandable with LINprobe
*2 Expandable with GLX427
*3 Expandable with GLX415
*4 Expandable with GLX504

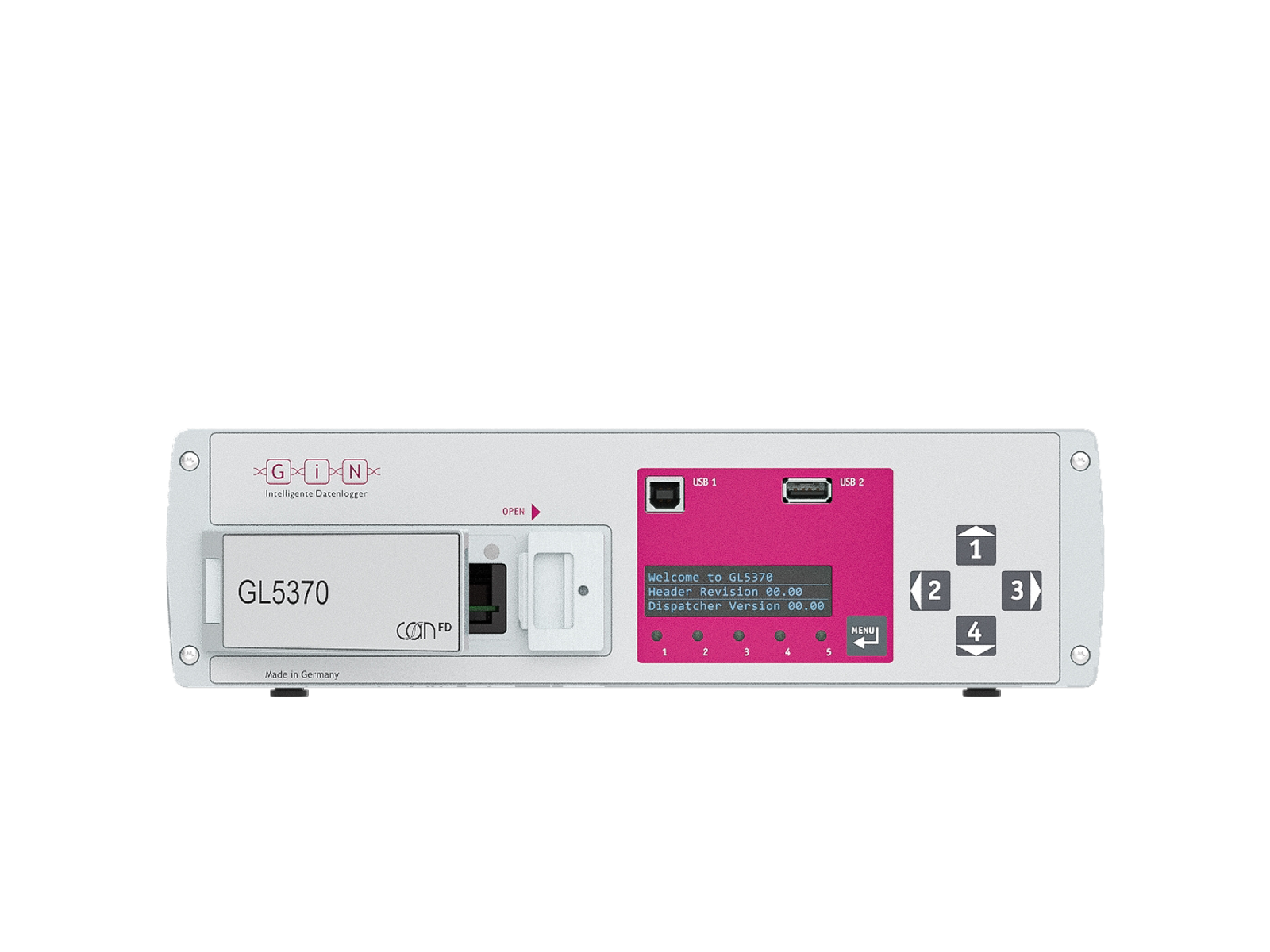

GL53000 series
The GL5300 Series enables synchronous recording of CAN/LIN, MOST, FlexRay, CAN FD (up to 12×), and Ether-net networks.
To product

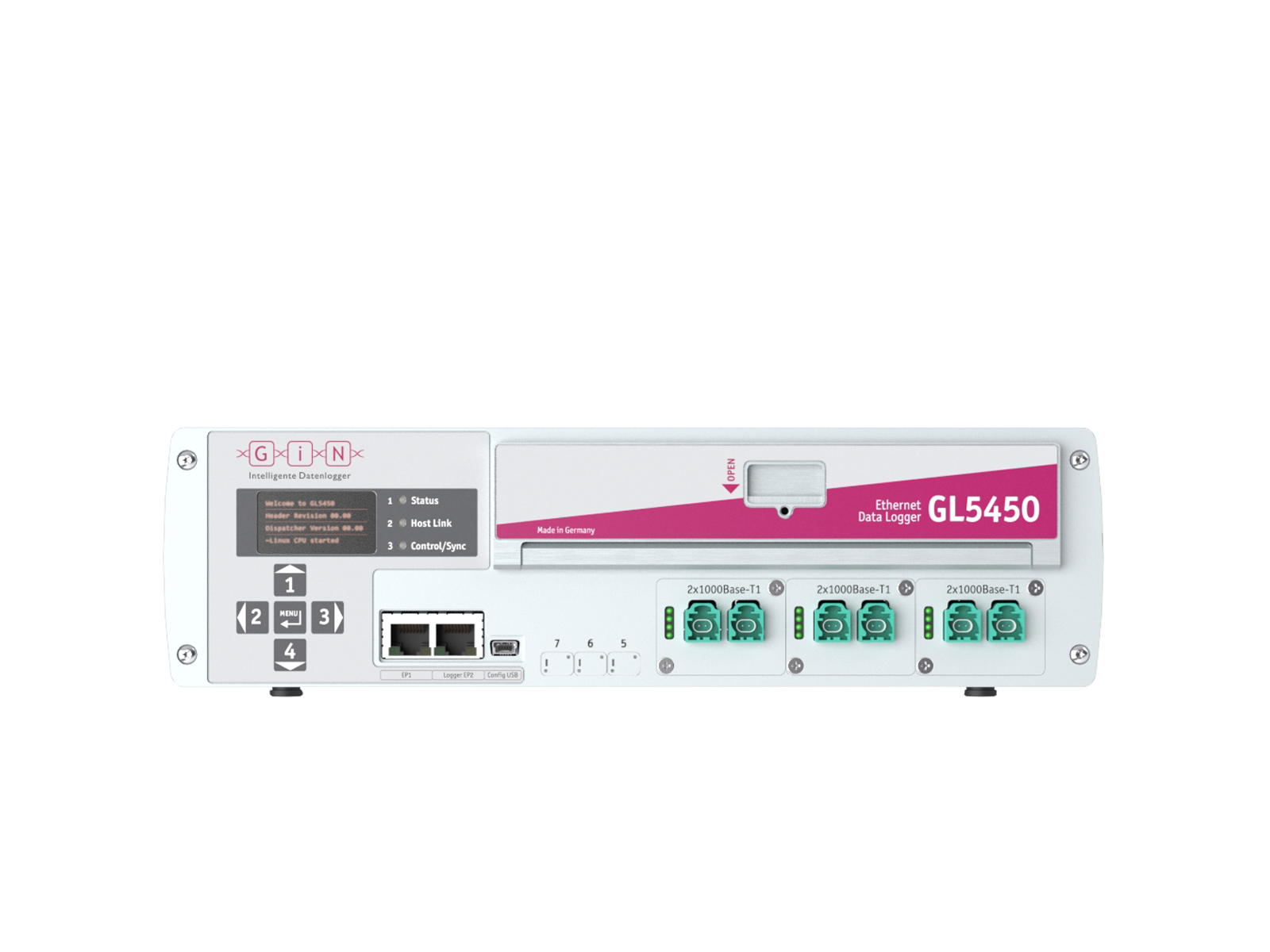

GL5450
The GL5450 can log data from up to 20 x 100Base-T1 and 6 x 1000Base-T1 interfaces with a very precise time stamp resolution of 64 ns on up to 2 SSDs.
To product

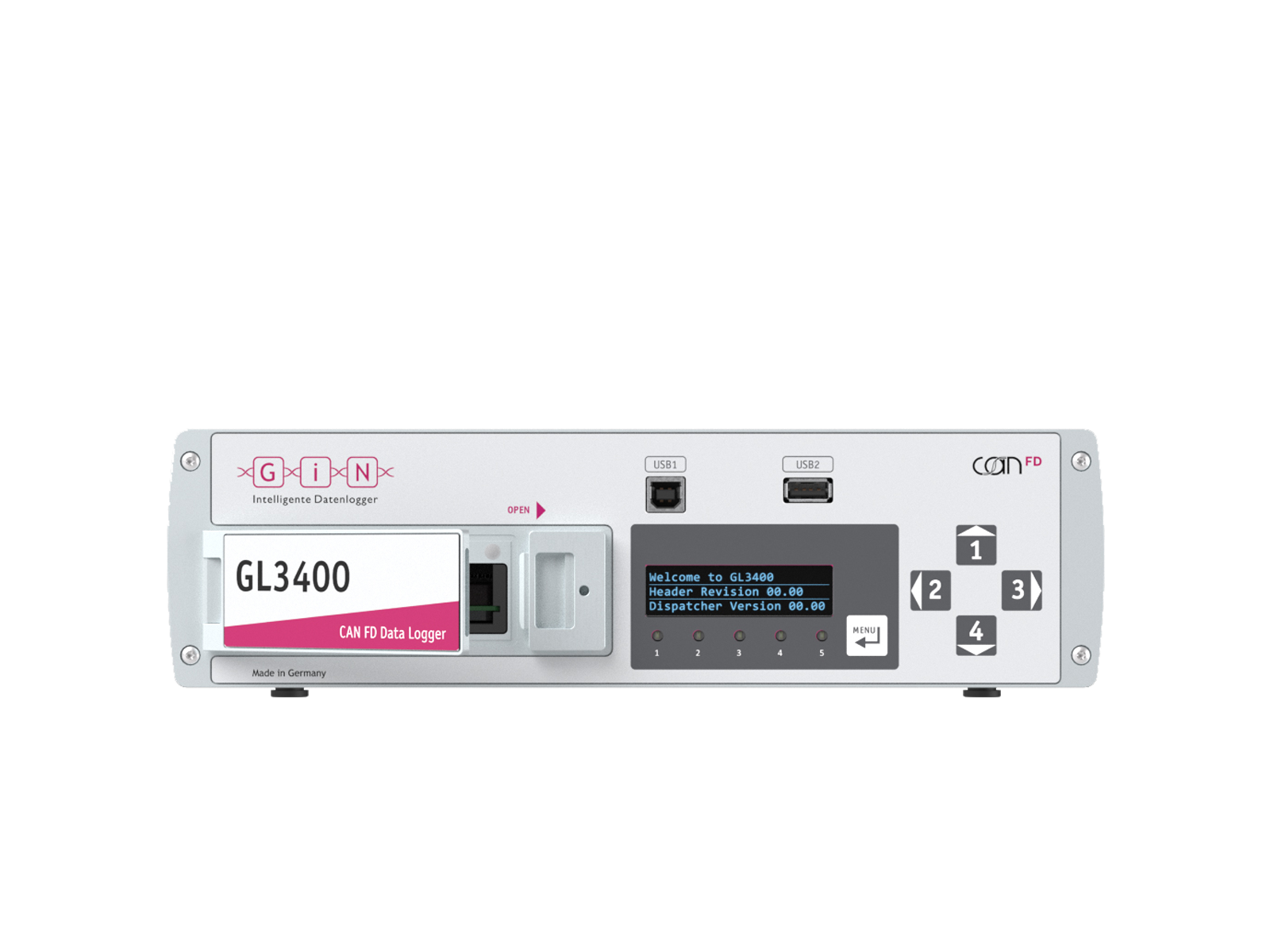

GL3400
The GL3400 features CAN FD support for higher data rates, high performance, and flexible scalability – enabling synchronized logging of Ethernet, LIN, and up to 4 cameras.
To product
GL2400/GL2410
The data logger GL2400 encompasses all the benefi ts of the GL2000 series, in addition to supporting CAN FD. This means that it can record signals of the CAN FD bus system. It supports both the ISO and non-ISO (Bosch) standard.
To product

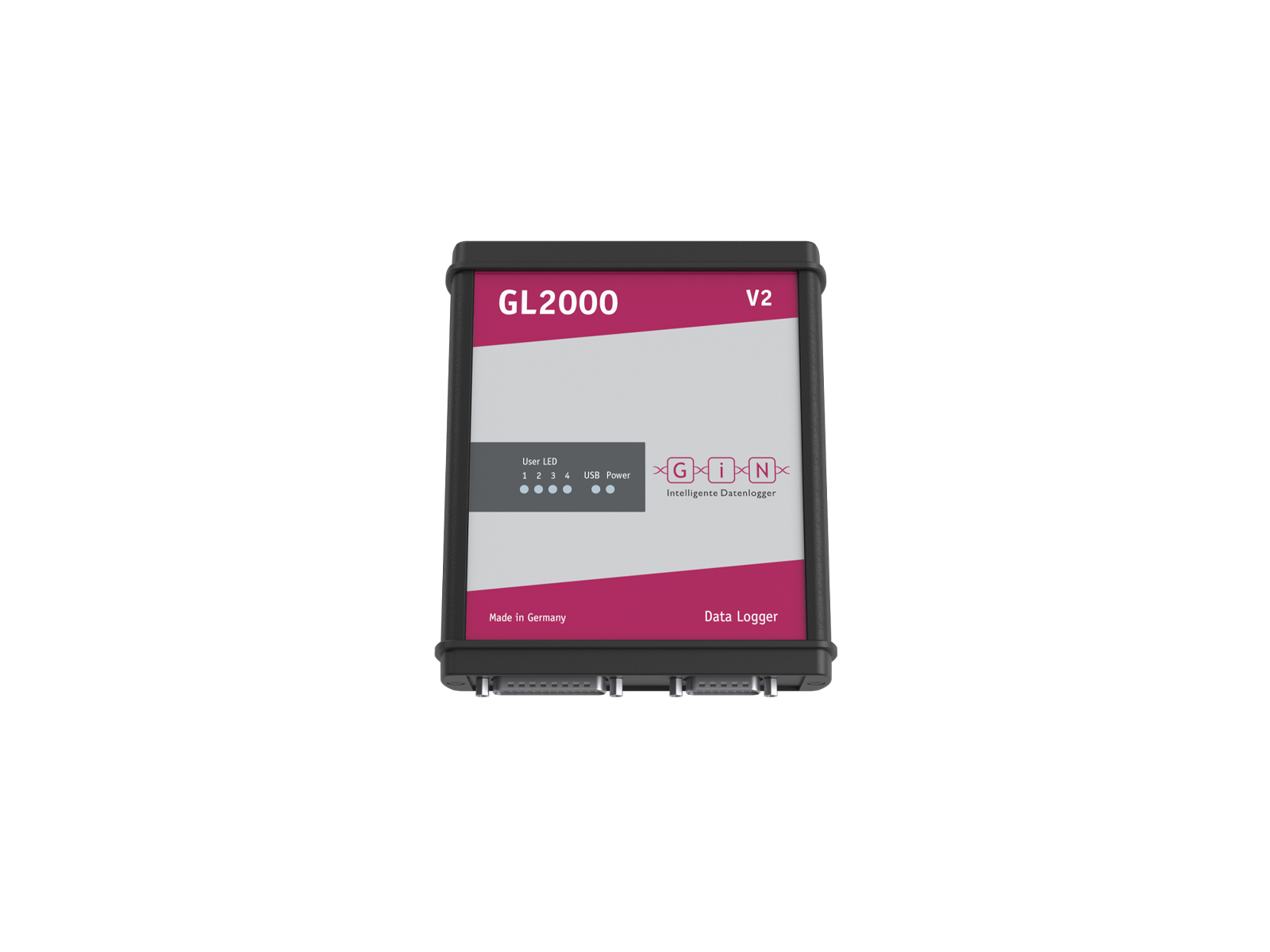

GL2000 series
The GL2000 series, with its 4 CAN and 2 LIN buses, closes the gap between the GL1000 series and the G.i.N. high-end data logger.
To product

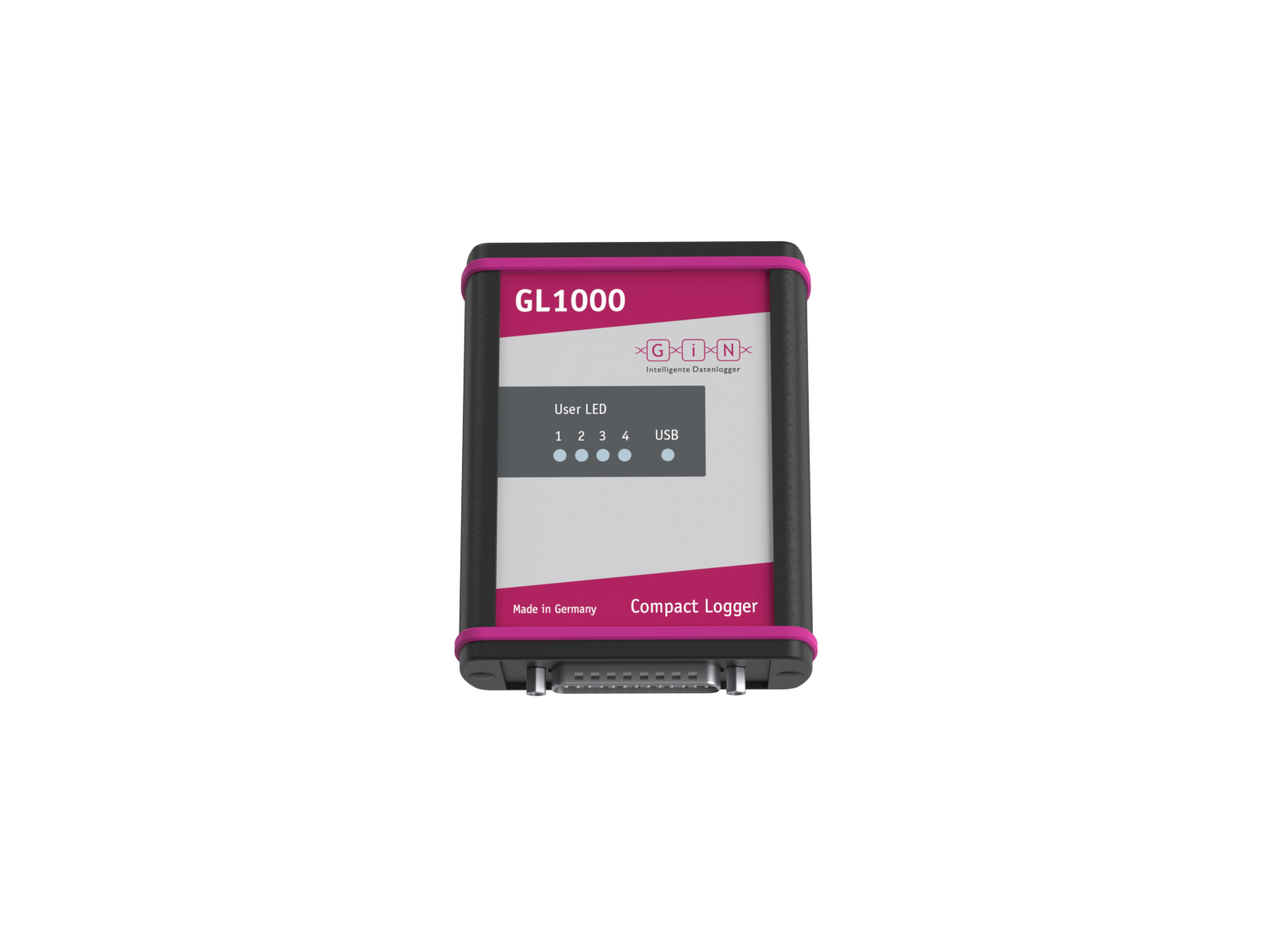

GL1000 series
The GL1000 is our smallest data logger, which is characterized by its high storage capacity, easy handling as well as the extensive configuration options.
To product

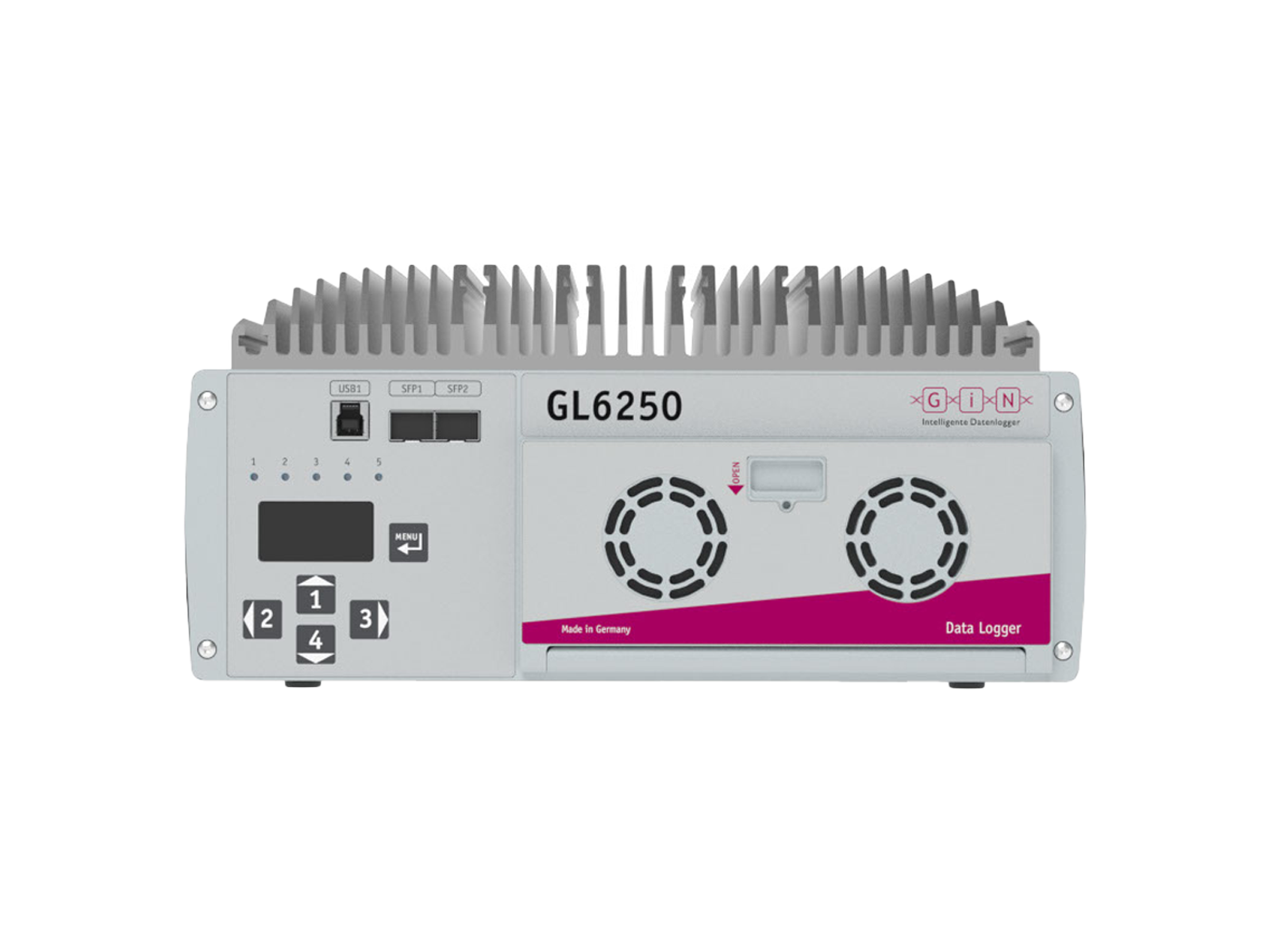

GL6250
The GL6250 provides time-synchronized recording of CAN, LIN, FlexRay, CAN FD and Automotive Ethernet and offers flexible expansion for complex test environments.
